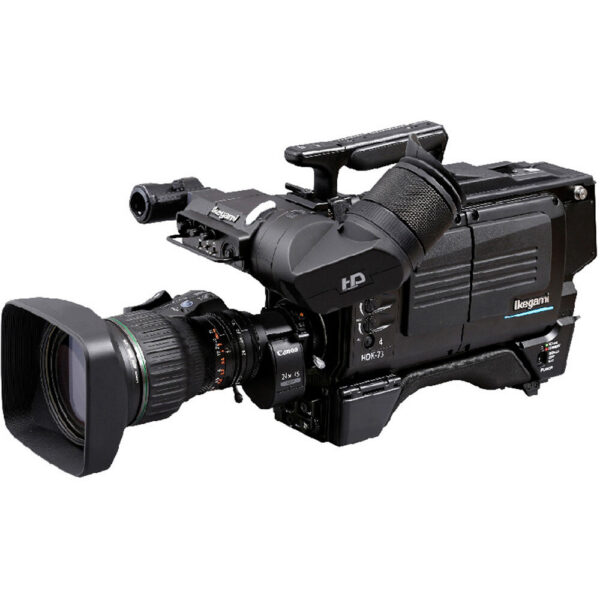

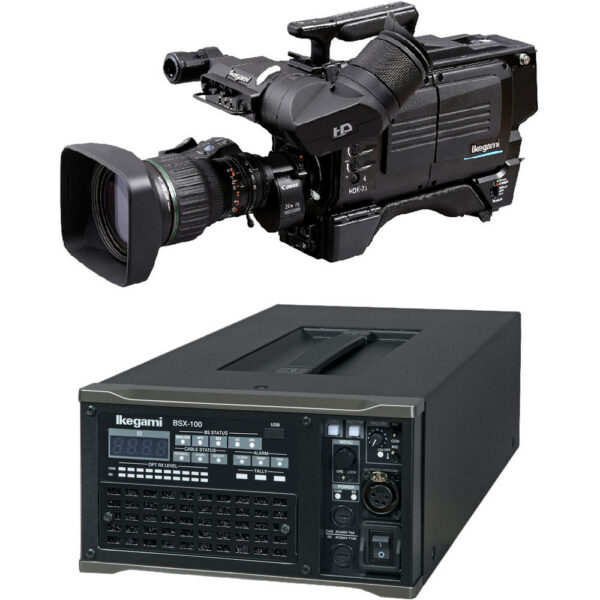

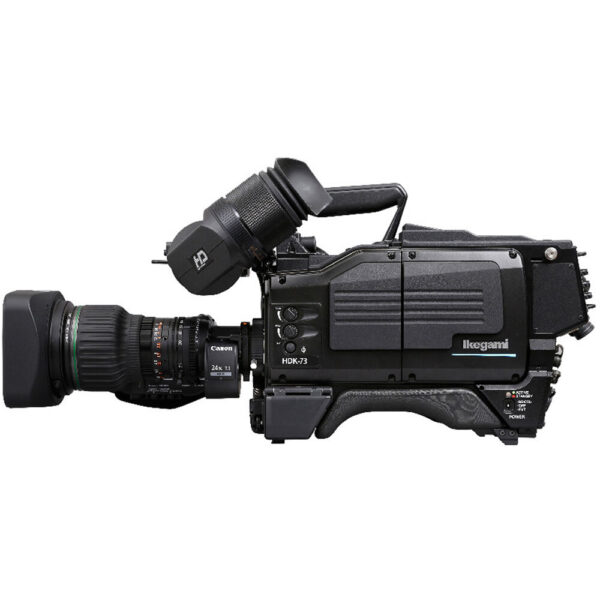

Ikegami HDK-73 HDTV Camera System with BSX-100H Digital Base Station
$67,400.00
In Stock
- Three 2.6MP 2/3" CMOS Sensors
- Native Multi-Format Support
- FA-97A Fiber Adapter with Multiple I/O
- BSX-100H Digital Base Station
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Ikegami HDK-73 HDTV Camera System with BSX-100H Digital Base Station
The Ikegami HDK-73 HDTV Camera System with BSX-100H Digital Base Station brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 2.6 Megapixel 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- Three 2.6MP 2/3" CMOS Sensors
- Native Multi-Format Support
- FA-97A Fiber Adapter with Multiple I/O
- BSX-100H Digital Base Station
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Ikegami HDK-73 HDTV Camera System with BSX-100H Digital Base Station

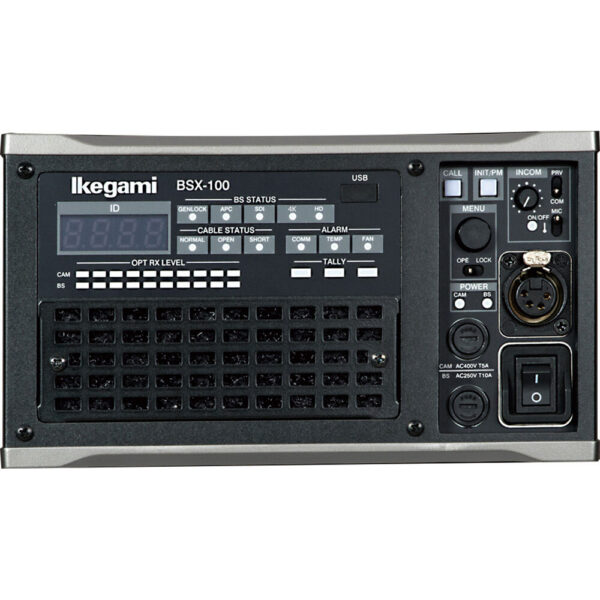

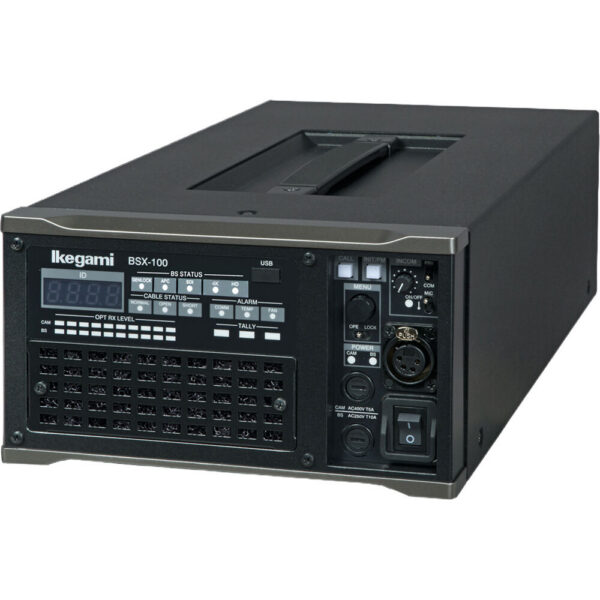

- Ikegami BSX-100H Digital Base Station
- FA-97A Fiber Adapter
- Ikegami T-430 Tripod Mounting Plate
| SKU | HDK-73/BX |
|---|---|
| Brand | Ikegami |
| Lens Mount | B4 |
|---|---|
| Image Sensor | 2/3"-Type CMOS |
| Sensor Resolution | 2.6 Megapixel |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Built-In CC Filter | No |
| Broadcast System Compatibility | NTSC, PAL |
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
|---|---|
| Shutter Speed | Electronic Shutter 1/2000 to 1/100 Second |
| ISO/Gain Sensitivity | Gain: -6 to 18 dB |
| Signal-to-Noise Ratio | 60 dB |
| Precise Scan Rate Control | No |
| Sensitivity | f/12 at 2000 lux (at 59.94i)f/13 at 2000 lux (at 50i) |
| Exposure Modes | Auto, Manual |
| Focus Mode | Continuous-Servo AF |
|---|
| Internal Recording | No |
|---|---|
| Video Output | via SDI/BNC1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output | NTSC with 1000 TV LinesPAL with 1000 TV Lines |
| Audio Recording | No |
| IP Streaming | No |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |
|---|---|
| Internal Storage | No |
| CCU I/O | No |
| Video I/O | 4x BNC (HD-SDI) Output 1x BNC (3G-SDI) Output 1x BNC (HD-SDI) Input 1x Mini-DIN 4-Pin (S-Video) Output |
| Audio I/O | 2x XLR 3-Pin Input |
| Power I/O | 1x LEMO 4-Pin Output |
| Other I/O | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|
| Power Consumption | 10 W |
|---|
| Operating Conditions | 32 to 104°F / 0 to 40°C at 30 to 90% Humidity |
|---|
| Shoe Mount | No |
|---|---|
| Tripod Mount | No |
| Dimensions (W x H x D) | 13.3 x 10.6 x 5.5" / 33.7 x 27 x 13.9 cm |
| Weight | 10 lb / 4.6 kg (With Fiber Back) |
