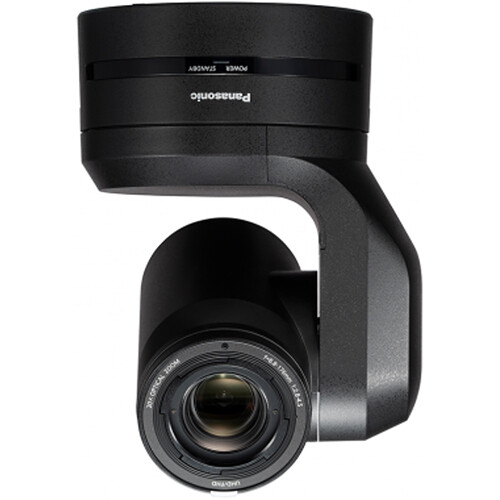

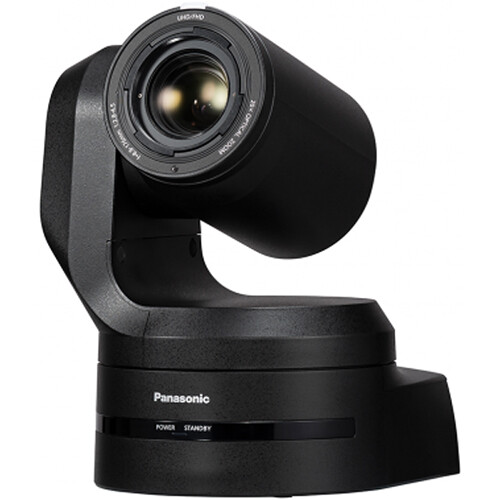

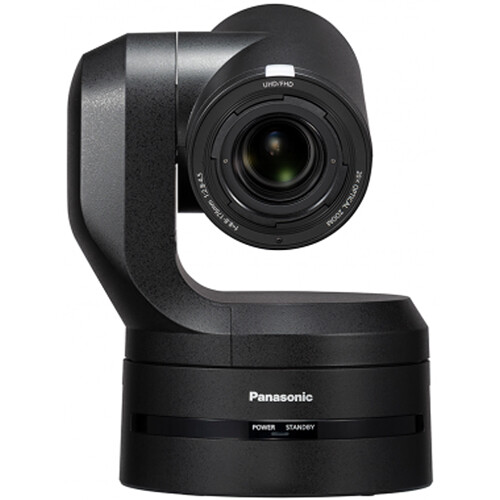

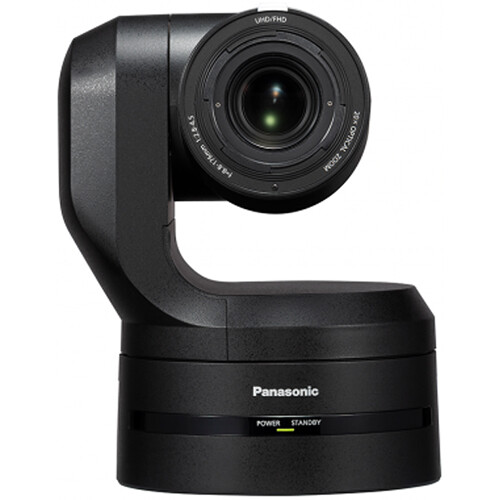

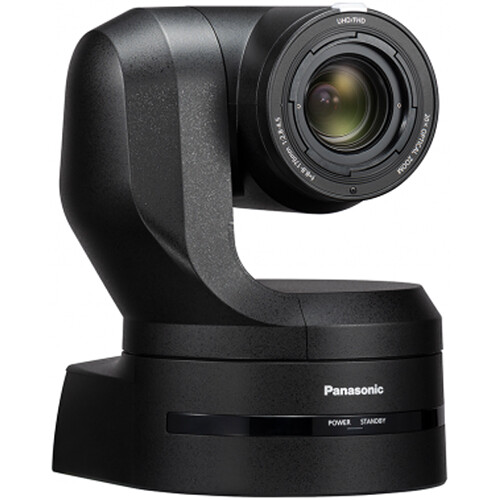

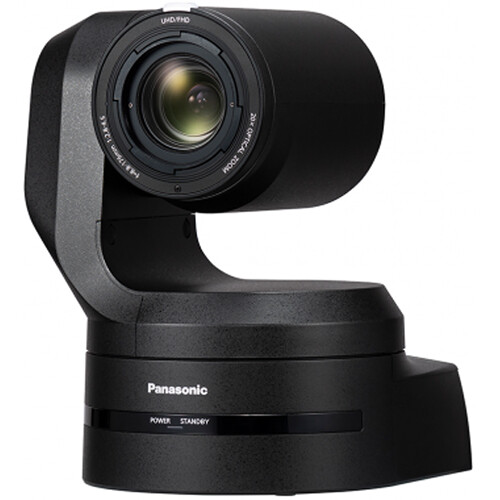

Panasonic AW-HE145 HD/60p Integrated PTZ Camera with 20x Zoom and OLPF (Black)
$9,780.58
In Stock
- Built-In Optical Low-Pass Filter
- Integrated 1" MOS Sensor
- 1080p60 Resolution, 20x Optical Zoom
- HDMI 2.0, 3G-SDI, and IP Connectivity
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Panasonic AW-HE145 HD/60p Integrated PTZ Camera with 20x Zoom and OLPF (Black)
Designed for creators who demand more from their gear, the Panasonic AW-HE145 HD/60p Integrated PTZ Camera with 20x Zoom and OLPF (Black) delivers capable, consistent performance. Everyday handling is covered with No connectivity.
Highlights
- Built-In Optical Low-Pass Filter
- Integrated 1" MOS Sensor
- 1080p60 Resolution, 20x Optical Zoom
- HDMI 2.0, 3G-SDI, and IP Connectivity
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Panasonic AW-HE145 HD/60p Integrated PTZ Camera with 20x Zoom and OLPF (Black)
| SKU | MOD1AWHE145KPJ |
|---|---|
| Brand | Panasonic |
| Image Sensor | 1"-Type MOS |
|---|---|
| Horizontal Resolution (TV Lines) | 1000 TV Lines |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/500 Seconds in Video Mode |
|---|---|
| Minimum Illumination | 2 Lux at f/2.8 Aperture |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Presets: ATW, AWB, VAR |
| Focal Length | 8.8 to 176mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 75.1 to 4°Vertical: 46.7 to 2.3°Diagonal: 82.8 to 4.6° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 0.33' / 10.06 cm (Wide) to 3.3' / 100.6 cm (Tele) |
| Video Output | via HDMI / RJ45 / SDI/BNC1920 x 1080p at 23.98/24.00/25/29.97/59.94 fps 1920 x 1080i at 50/59.94 fps 1920 x 1080 PsF at 23.98/25/29.97 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Embedded Audio | HDMI/IP/SDI |
| Internal Recording | No |
| Audio Recording | 2-Channel 16-Bit 48 k Hz AAC LC Audio |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera ControlIP/NDI/HX/RS-422 |
| IP Streaming | H.264/H.265 via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 1920 x 1080 up to 60p |
| Tally Light | Yes |
|---|
| Wireless | No |
|---|

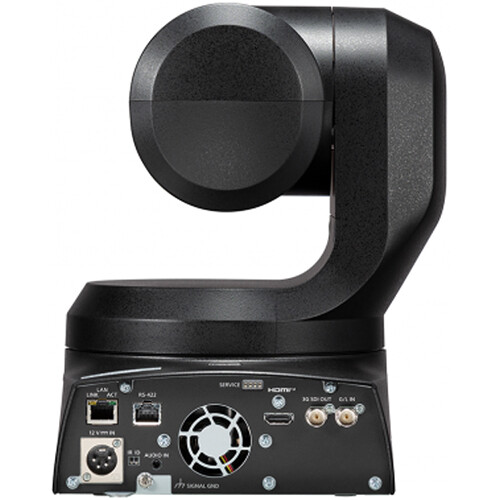

| Video I/O | 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 LAN Input/Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1x RJ45 (RS-422) Control Input |
| Built-In Microphone | Yes |
| PoE Support | Yes: PoE Proprietary |
|---|---|
| Power I/O | 1x XLR 4-Pin (10.8 to 13.2VDC) |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 20 to 90% Humidity |
|---|---|
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x Proprietary for Bracket |
|---|---|
| OS Compatibility | Computer: Windows 10 or Later / macOS 11 or Later / Chrome OSMobile: iOS Only |
| Dimensions (W x H x D) | 8.4 x 10.5 x 8.6" / 213 x 267 x 219 mm (Without Bracket, Protrusions) |
