Panasonic AW-UE160 UHD 4K 20x PTZ Camera (Black)
$12,473.15
In Stock
- 4K 1" Type 9.6MP MOS Sensor
- Up to UHD 4K60 & 1080 Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- Built-In NDI & NDI|HX, ST 2110 Option
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

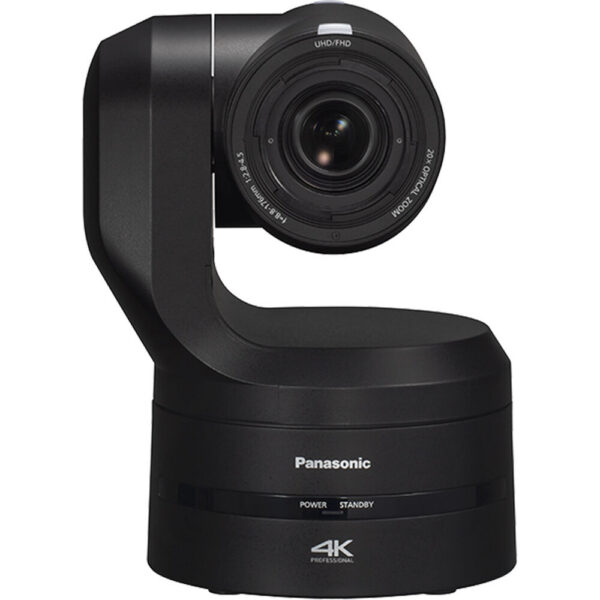

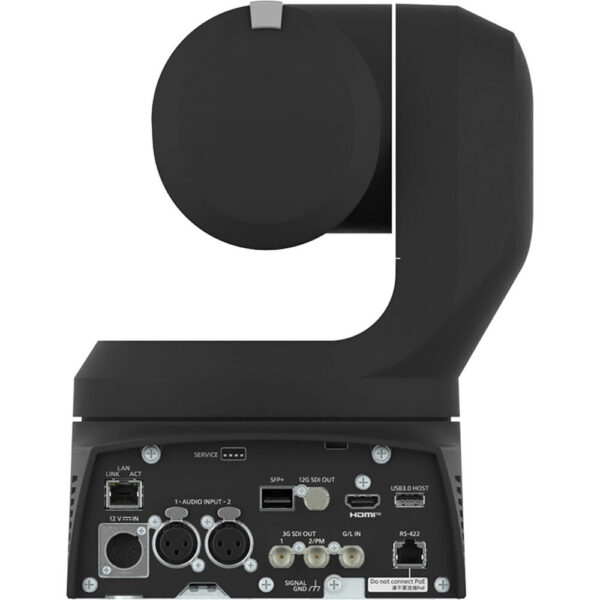

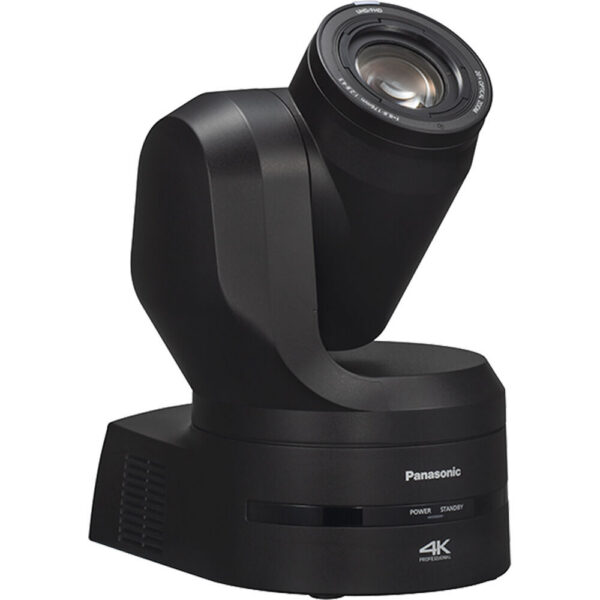

Panasonic AW-UE160 UHD 4K 20x PTZ Camera (Black)
The Panasonic AW-UE160 UHD 4K 20x PTZ Camera (Black) is built for photographers and creators who want dependable, professional results. At its core is a 9.62 Megapixel 1"-Type sensor. Everyday handling is covered with IR*Built-In connectivity.
Highlights
- 4K 1" Type 9.6MP MOS Sensor
- Up to UHD 4K60 & 1080 Simultaneous Out
- 12G-SDI, HDMI, Fiber & IP Transmission
- Built-In NDI & NDI|HX, ST 2110 Option
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Panasonic AW-UE160 UHD 4K 20x PTZ Camera (Black)
- Cable Cover
- Mounting Hardware
Videos
| SKU | AW-UE160KPJ |
|---|---|
| Brand | Panasonic |
| Image Sensor | 1"-Type MOS |
|---|---|
| Horizontal Resolution (TV Lines) | 1600 TV Lines |
| Sensor Resolution | 9.62 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/2000 to 1/48 Second |
|---|---|
| ISO/Gain Sensitivity | Gain: 0 to 36 dB |
| Precise Scan Rate Control | Yes |
| Minimum Illumination | 2 Lux |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: ATW, AWBRange: 2000 to 15,000K |
| Focal Length | 8.8 to 176mm (35mm Equivalent: 24.5 to 490mm) |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 10x |
| Field of View | Horizontal: 75.1 to 4°Vertical: 46.7 to 2.3°Diagonal: 82.8 to 4.6° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 3.9' / 1.2 m |
| Video Output | via HDMI / RJ45 / SDI/BNC3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Embedded Audio | LAN (RJ45) Output |
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| IP Streaming | NDI HX2/RTMP/SRT/UDP 1920 x 1080 to 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 50p, 59.94p, 60p 1280 x 720 at 50p, 59.94p |
| Presets | 100 |
|---|---|
| Pan/Tilt/Roll | Pan: 350° (-175 to 175°) at 0.08 to 1800°/s Tilt: 240° (-30 to 210°) at 0.08 to 1800°/s |
| Tally Light | Yes |
| Wireless | IR*Built-In Wi-Fi 6 (802.11ax)*Via Optional Adapter |
|---|---|
| Max Cable Length | 328.1' / 100 m (Cat 5e, Cat 6)4.9' / 1.5 m (USB) |
| Video I/O | 1x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output 1x HDMI 2.0 Output |
|---|---|
| Audio I/O | 2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power) |

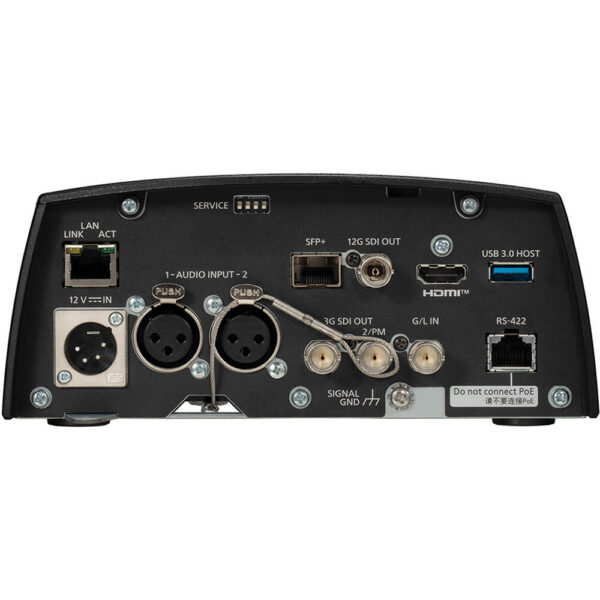

| Other I/O | 1x RJ45 (LAN) Control 1x RJ45 (RS-422) Control 1x BNC (Genlock) Input 1x USB-A (USB 3.0) Host (Shared with Video Output) |
| Expansion Slots | 1x SFP+ Slot |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power I/O | 1x XLR 4-Pin (12VDC at 1.5 A) Input |
| Power Consumption | 10.8 to 13.2 VDC at 5 A PoE: 42 to 57 VDC |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 20 to 90% Humidity |
|---|---|
| Storage Conditions | -4 to 122°F / -20 to 50°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female6x M3 Female |
|---|---|
| OS Compatibility | Chrome OS / Windows 10 or Later / macOS 10.13 to 15 |
| Security Lock Support | Bolt-Down Base |
| Dimensions (W x H x D) | 10.9 x 9.4 x 8.4" / 27.7 x 24 x 21.3 cm (Without Bracket, Protrusions) |
| Weight | 10 lb / 4.6 kg (Body Only) |
| Package Weight | 16.035 lb |
|---|---|
| Box Dimensions (Lx WxH) | 19.2 x 16 x 15" |
