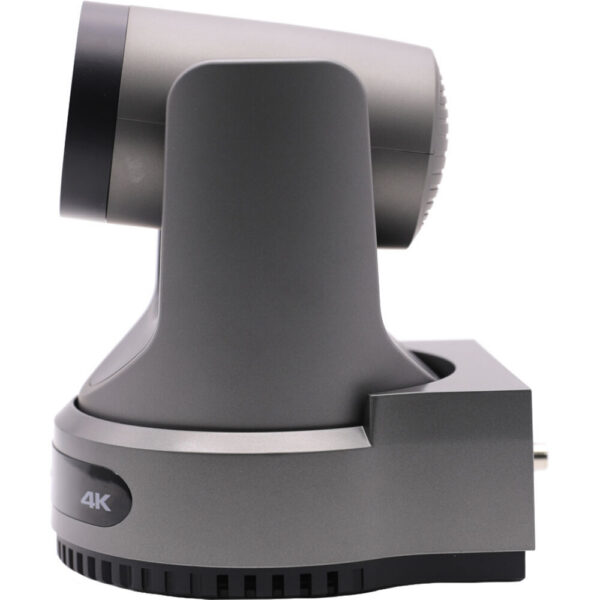

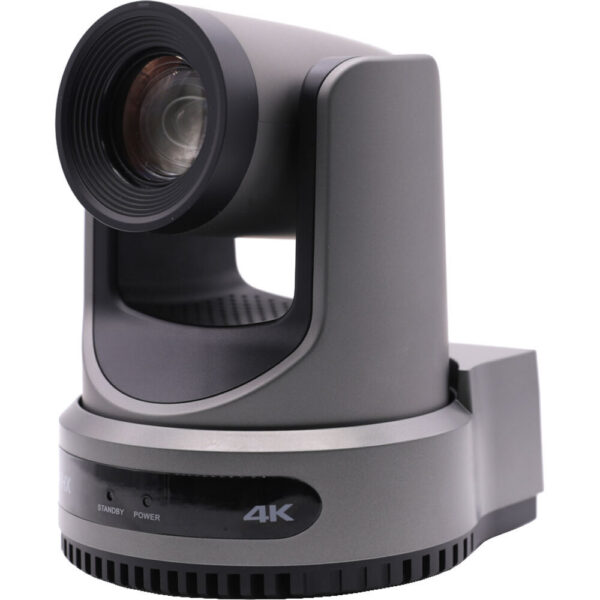

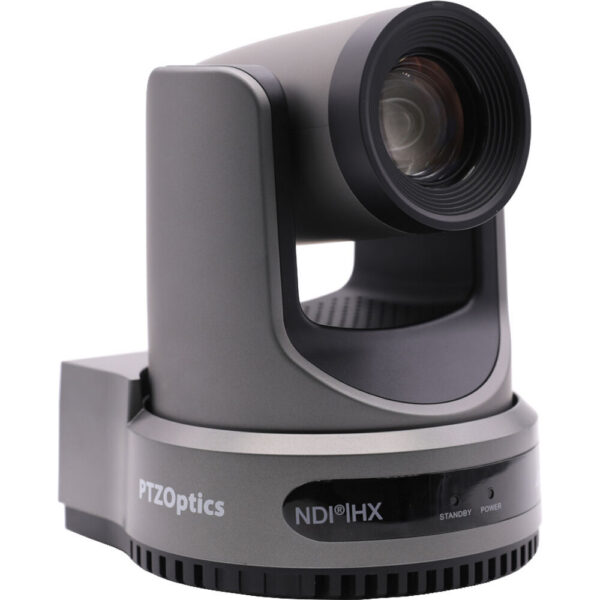

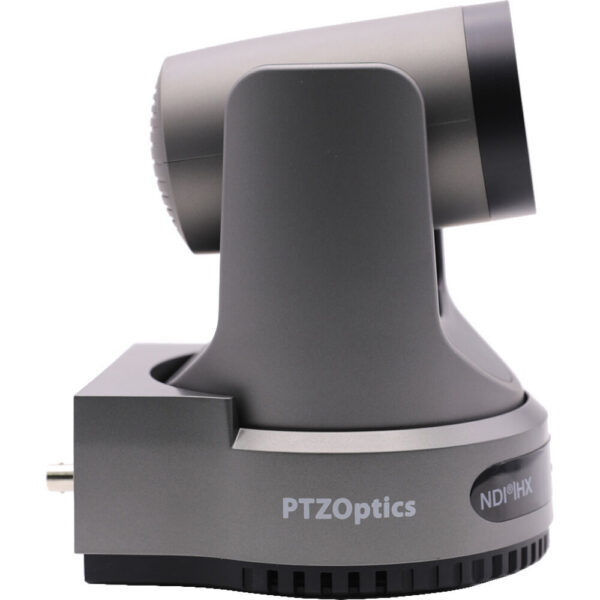

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
$2,349.00
In Stock
- 1/1.8" CMOS 8.42MP 4K Sensor
- Capture Video Resolutions up to UHD 4K60
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB, NDI|HX 3 & IP Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
The PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 8.42 Megapixel 1/1.8"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- 1/1.8" CMOS 8.42MP 4K Sensor
- Capture Video Resolutions up to UHD 4K60
- 20x Optical Zoom, 16x Digital Zoom
- HDMI, 3G-SDI, USB, NDI|HX 3 & IP Output
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Gray)
- IR Remote Control
- 12 VDC Power Adapter
- USB-A to USB-A Cable
- RS-232 Cable
- 2 x AA Battery
Videos
| SKU | PT20X-4K-GY-G3 |
|---|---|
| Brand | PTZOptics |
| Image Sensor | 1/1.8"-Type CMOS |
|---|---|
| Sensor Resolution | 8.42 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1/30 Second |
|---|---|
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | Range: 2500 to 8000K Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR |
| Focal Length | 6.25 to 125mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 2x ( in 1080p)3x ( in 720p) |
| Field of View | Horizontal: 60.7 to 3.5°Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.58 to 3.95 |
| Video Output | via HDMI / RJ45 / USB3840 x 2160 at 25/29.97/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps via SDI/BNC1920 x 1080p at 25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps |
|---|---|
| Internal Recording | No |
| Audio Recording | AAC Audio |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control Pelco-D/Pelco-P/RS-232/RS-485/VISCA |
| IP Streaming | H.264/H.265/MJPEG via HTTP/NDI/NDI HX/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP 640 x 320 to 3840 x 2160 up to 60p (Main Stream: 0.03 to 102.4 Mb/s) 320 x 240 to 720 x 480 up to 60p (Sub Stream: 0.03 to 20.48 Mb/s) |
| Presets | 255 |
|---|---|
| Pan/Tilt/Roll | Tilt: 120° (-30 to 90°) at 1.7 to 69.9°/s Pan: 340° (-170 to 170°) at 1.7 to 100°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|

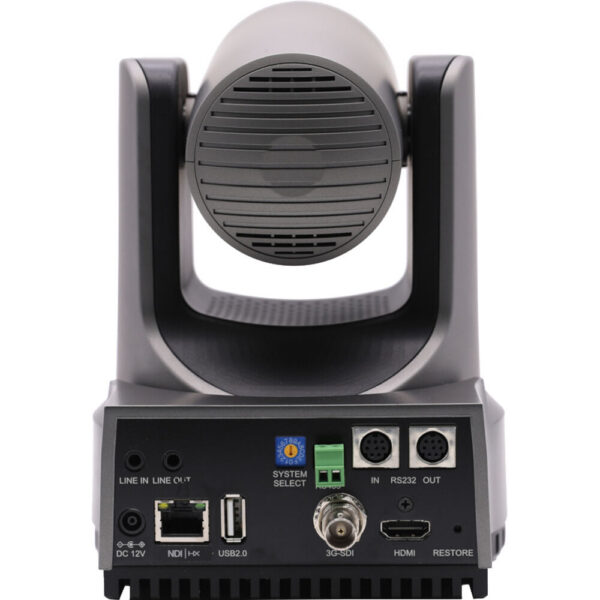

| Video I/O | 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output |
|---|---|
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1x D-Sub 8-Pin (RS-232) Control Input 1x D-Sub 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output 1x USB-A (USB 2.0) Control Input (Shared with Video Output) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x DC (12VDC) Input |
| Power Consumption | Device: 12 VDC at 1 A (18 W) |
| Operating Conditions | 14 to 104°F / -10 to 40°C at 10 to 80% Humidity |
|---|---|
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female3x M3 Female |
|---|---|
| Materials | Aluminum, Plastic |
| OS Compatibility | Computer: Windows 7 to 11 / macOS / Linux Mobile: Android Only |
| Dimensions (W x H x D) | 5.6 x 6.9 x 5.9" / 141.5 x 176 x 151 mm |
| Weight | 3 lb / 1.47 kg (Body Only) |
| Package Weight | 6.7 lb |
|---|---|
| Box Dimensions (Lx WxH) | 10.3 x 10.1 x 9.1" |
