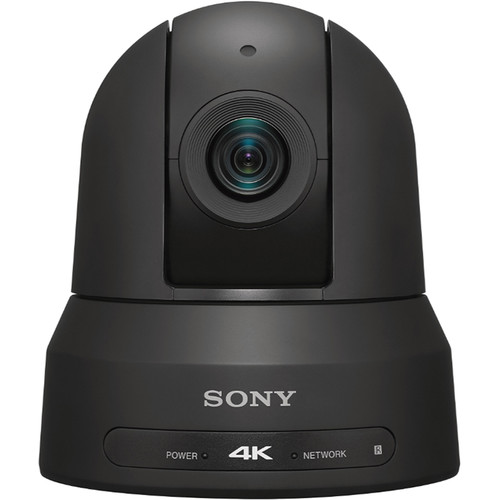

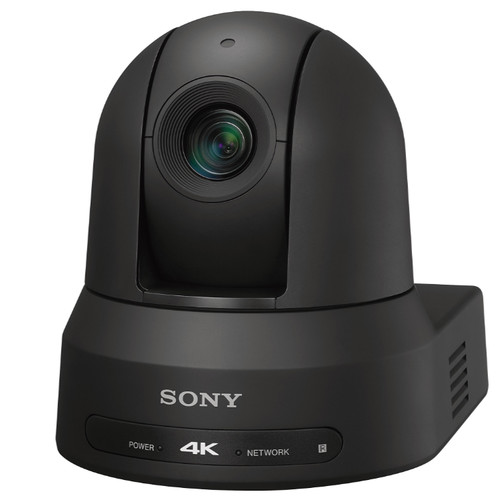

Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)
$5,300.00
In Stock
- Up to 3840 x 2160 Resolution at 60 fps
- 1/2.5" Exmor R CMOS Sensor
- 3G-SDI, HDMI & Ethernet Output
- 340° Pan and 110° Tilt
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)
The Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black) is built for photographers and creators who want dependable, professional results. At its core is a 8.5 Megapixel 1/2.5"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- Up to 3840 x 2160 Resolution at 60 fps
- 1/2.5" Exmor R CMOS Sensor
- 3G-SDI, HDMI & Ethernet Output
- 340° Pan and 110° Tilt
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Sony BRC-X400 4K PTZ Camera with HDMI, IP & 3G-SDI Output (Black)
- AC Power Adapter
- IR Remote Commander
- 2 x Ceiling Brackets
- Wire Rope
- 9 x M3x8 Mounting Screws
- M2.6x6 Screw
- HDMI Cable Clamp
Videos
| SKU | BRC-X400 |
|---|---|
| Brand | Sony |
| Image Sensor | 1/2.5"-Type CMOS |
|---|---|
| Horizontal Resolution (TV Lines) | 1700 TV Lines |
| Sensor Resolution | 8.5 Megapixel |
| IR Cut Filter | Yes |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/10000 to 1 Second |
|---|---|
| ISO/Gain Sensitivity | Gain: 0 to 48 dB |
| Minimum Illumination | 1.6 Lux at 1/30 Shutter Speed |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 4.4 to 88mm |
|---|---|
| Max Optical Zoom | 20x |
| Max Digital Zoom | 80x ( in 1080p) |
| Field of View | Horizontal: 70° |
| Maximum Aperture | f/2 to 3.8 |
| Minimum Focus Distance | 3.1" / 8 cm (Wide) to 31.5" / 80 cm (Tele) |
| Video Output | via HDMI / RJ453840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50 fps 1280 x 720 at 50/59.94 fps via SDI/BNC3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Embedded Audio | HDMI/SDI: 2-Channel |
| Internal Recording | No |
| Audio Recording | AAC LC Audio |
| Broadcast Output | NTSC |
| IP Streaming | H.264/H.265 via RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP 640 x 360 to 1920 x 1080 at 59.94p |
| Presets | 256 via IP100 via VISCA |
|---|---|
| Pan/Tilt/Roll | Pan: 340° (-170 to 170°) at 0.5 to 300°/s Tilt: 110° (-20 to 90°) at 0.5 to 126°/s |
| Tally Light | Yes |
| Wireless | IR |
|---|

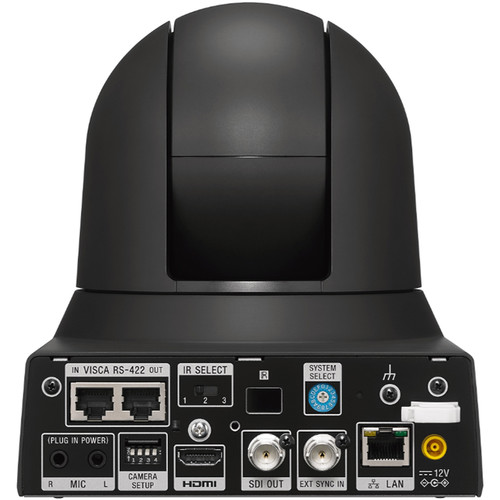

| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output |
|---|---|
| Audio I/O | 2x 1/8" / 3.5 mm TRS Stereo Mic/Line Input |
| Other I/O | 1x BNC (Sync) Input 1x RJ45 (RS-422, VISCA) Control Input 1x RJ45 (RS-422, VISCA) Control Output |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (10.8 to 13.2VDC) Input |
| Power Consumption | PoE: 25.5 WPower Supply: 23.8 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female for Tripod4x M3 Female for Bracket/Ceiling |
|---|---|
| OS Compatibility | Windows 8 or Later / macOS 10.15 or Later |
| Dimensions (W x H x D) | 6.24 x 6.99 x 7.88" / 15.84 x 17.75 x 20.02 cm |
| Weight | 4 lb / 1.8 kg (Body Only) |
| Package Weight | 8.135 lb |
|---|---|
| Box Dimensions (Lx WxH) | 12.8 x 12.7 x 12.2" |
