Sony HDC-5500R Flagship 4K HDR Portable Broadcast Camera
$93,880.00
In Stock
- 2/3" UHD 4K CMOS Sensor
- Crisp Global Shutter
- Requires CCU and License for UHD 4K
- Optical Fiber Out with UHB Transmission
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

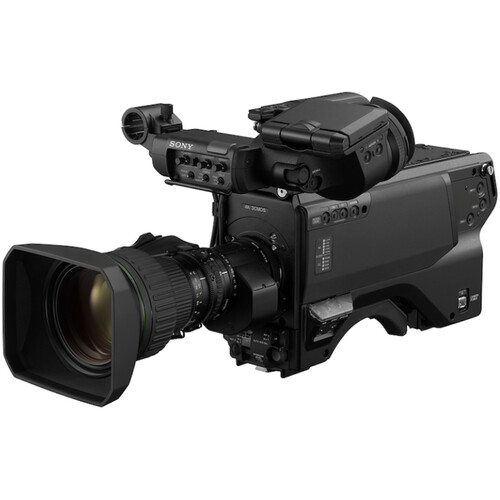

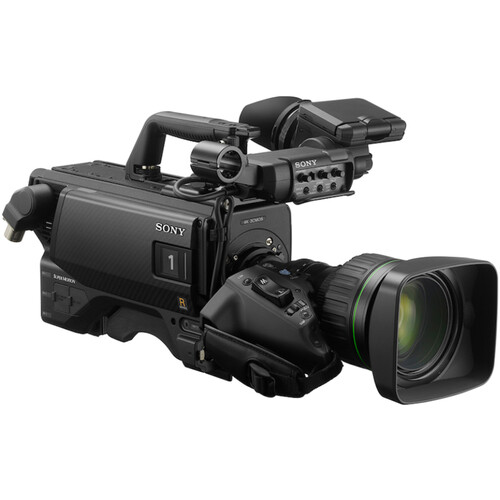

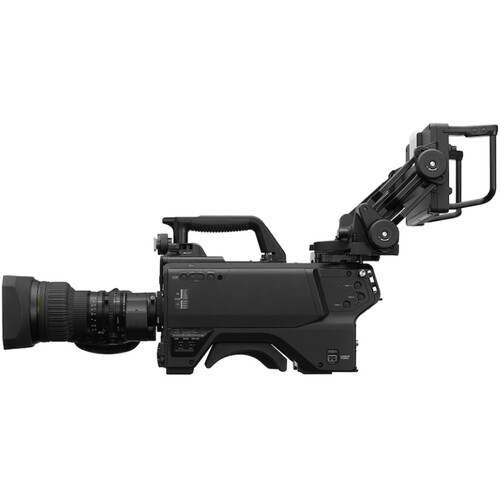

Sony HDC-5500R Flagship 4K HDR Portable Broadcast Camera
Designed for creators who demand more from their gear, the Sony HDC-5500R Flagship 4K HDR Portable Broadcast Camera delivers capable, consistent performance. At its core is a Not Specified by Manufacturer 2/3"-Type sensor paired with the B4 lens mount.
Highlights
- 2/3" UHD 4K CMOS Sensor
- Crisp Global Shutter
- Requires CCU and License for UHD 4K
- Optical Fiber Out with UHB Transmission
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
Videos
| SKU | HDC-5500R |
|---|---|
| Brand | Sony |

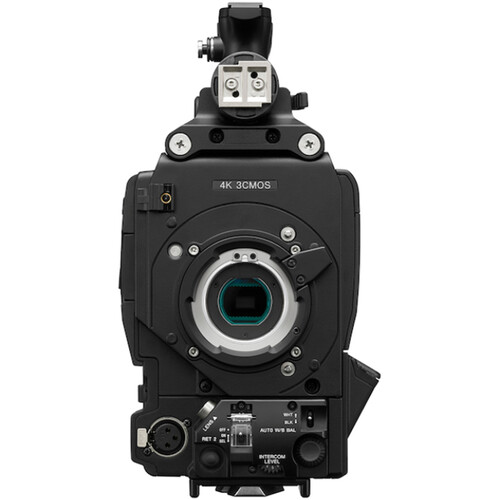

| Lens Mount | B4 |
|---|---|
| Lens Communication | Yes, with Autofocus Support |
| Image Sensor | 2/3"-Type 3-Chip CMOS |
| Sensor Resolution | Not Specified by Manufacturer |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), or 6-Stop (1/64) ND Filters |
| Built-In CC Filter | Mechanical Filter Wheel with 3200K, 4300K, or 6300K Color Correction Filter |
| Broadcast System Compatibility | NTSC, PAL |
| Shutter Type | Electronic Global Shutter |
|---|---|
| Signal-to-Noise Ratio | -64 dB |
| Precise Scan Rate Control | No |
| Sensitivity | f/10 at 2000 lux 89.9% Reflectance (1080p59.4)f/11 at 2000 lux 89.9% Reflectance (1080p50) |
| Focus Mode | Automatic, Manual Focus |
|---|
| Internal Recording | No |
|---|---|
| Video Output | via SDI/BNC3840 x 2160p at 50/59.94 fps 1920 x 1080p at 50/59.94 fps |
| Broadcast Output | NTSCPAL |
| IP Streaming | Yes |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |

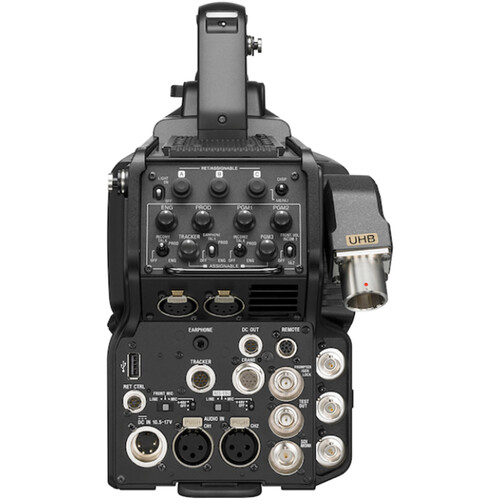

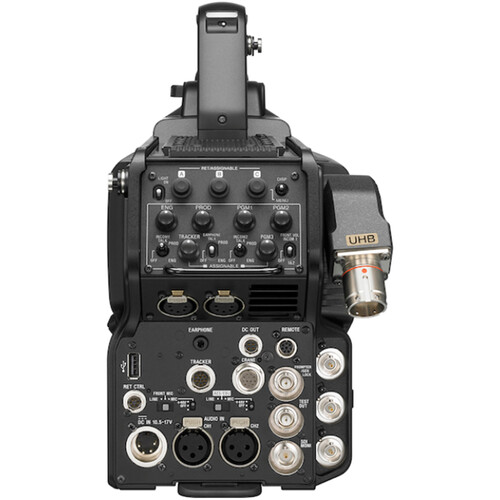

| CCU I/O | 1x LEMO SMPTE |
| Video I/O | 3x BNC (3G-SDI) Output 1x LC Output |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input 2x XLR 5-Pin Intercom Input/Output 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x XLR 4-Pin (10.5 to 17VDC) Input 1x XLR 4-Pin (10.5 to 17VDC at 0.5 A) Output 1x Light 2-Pin (10.5 to 17VDC at 2.5 A) Output |
| Other I/O | 1x 12-Pin Data 1x 20-Pin Viewfinder Output 1x BNC Test 1x BNC (Genlock, Sync) 1x 6-Pin Control 1x DIN 8-Pin Control 1x 12-Pin Data 1x 12-Pin 1x USB-A Data 1x RJ45 (Ethernet) |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Display Type | No |
|---|
| Operating Conditions | -4 to 113°F / -20 to 45°C |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Shoe Mount | No |
|---|---|
| Tripod Mount | 1x VCT-14 |
| Dimensions (W x H x D) | 5.4 x 10.6 x 14.3" / 138 x 268 x 363 mm |
| Weight | 11 lb / 5 kg (Body Only) |
