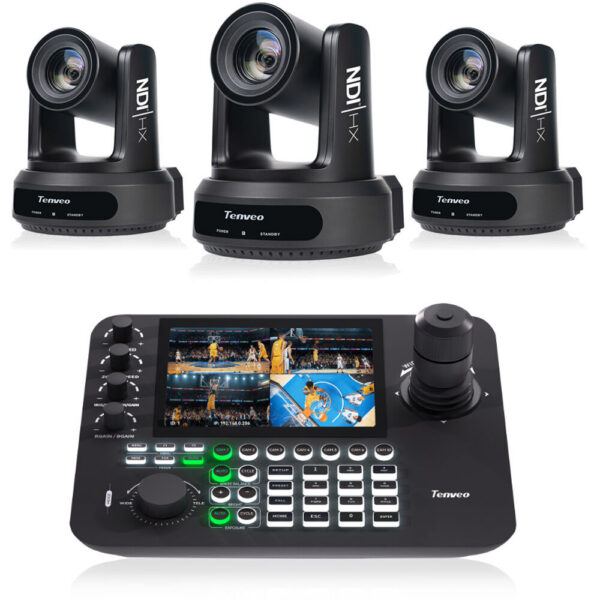

Tenveo All-in-One 1080p SDI/HDMI/USB/NDI PTZ 3-Camera Kit with Joystick Camera Controller
Designed for creators who demand more from their gear, the Tenveo All-in-One 1080p SDI/HDMI/USB/NDI PTZ 3-Camera Kit with Joystick Camera Controller delivers capable, consistent performance. At its core is a 2.07 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
3 x 1080p PTZ Cameras with 30x Zoom
PTZ Controller with 7" LCD Screen
3G-SDI, HDMI, USB 3.0 & IP/NDI Output
RS-232 & IR Control with Custom Presets
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

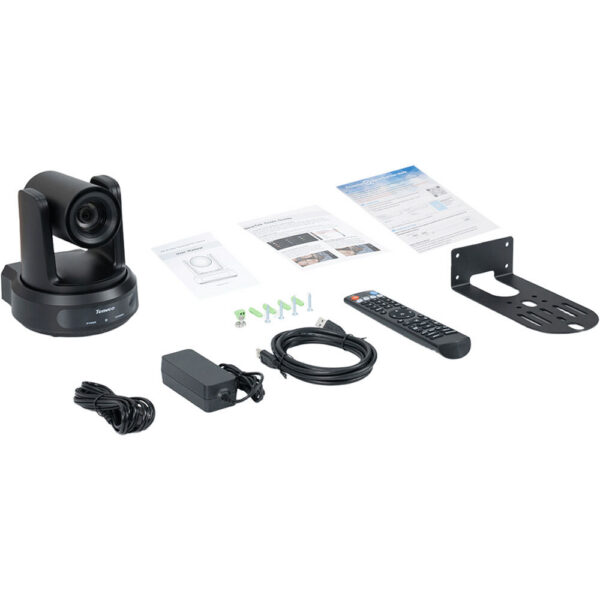

In the Box
Tenveo All-in-One 1080p SDI/HDMI/USB/NDI PTZ 3-Camera Kit with Joystick Camera Controller

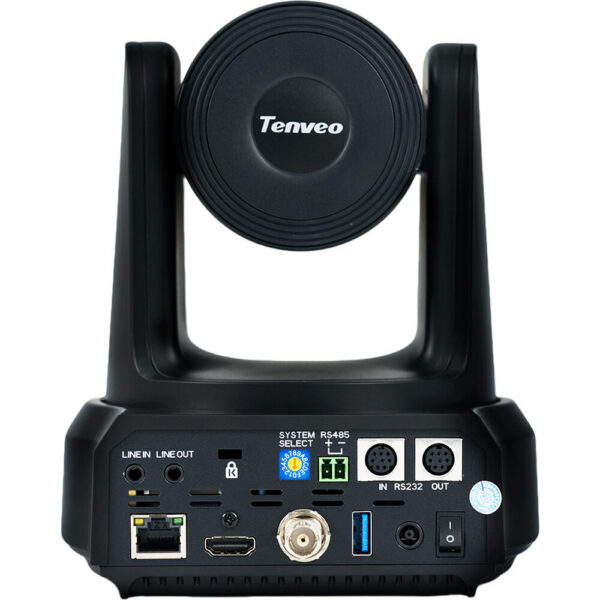

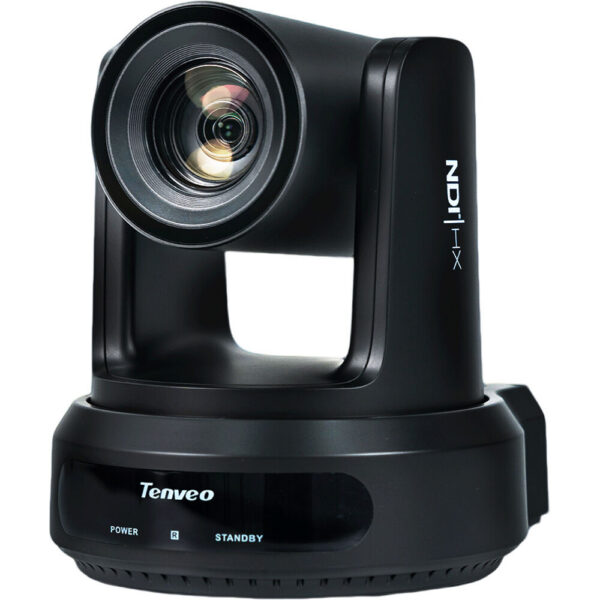

3 x Tenveo AI Auto-Tracking 1080p SDI/HDMI/USB/NDI Camera with 30x Optical Zoom

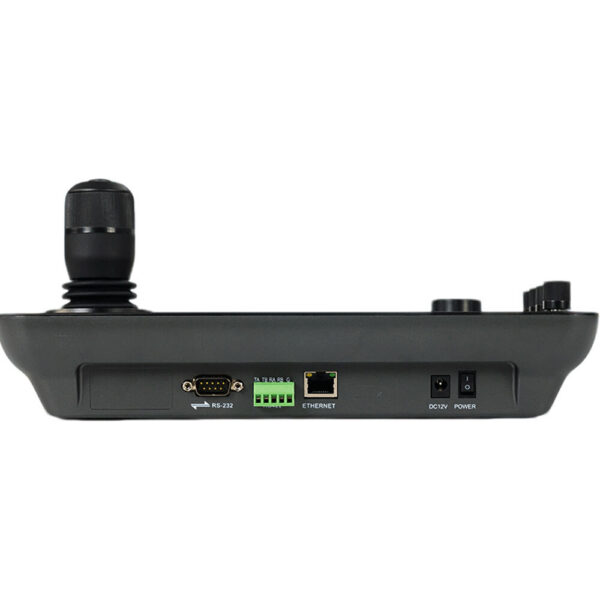

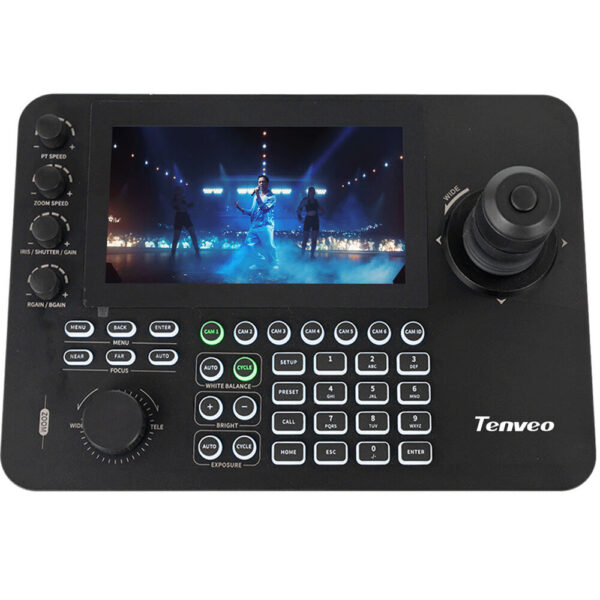

KB300 PRO Camera Controller
SKU
TEVO-BK3M30N-3
Brand
Tenveo
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
2.07 Megapixel
Focus Control
Autofocus
Exposure Control
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Manual
Lens
Focal Length
4.42 to 132.6mm
Max Optical Zoom
30x
Max Digital Zoom
16x
Field of View
Diagonal: 72.5 to 3.63°
Maximum Aperture
f/1.8 to 2.8
Video Capture
Video Output
via HDMI / RJ45 / SDI/BNC / USB1920 x 1080p up to 60.00 fps
Embedded Audio
HDMI/IP/NDI/SDI/USB
Internal Recording
No
Broadcast Output
NTSC
Supported Protocols
Camera ControlIP/IR/NDI/ONVIF/Pelco-D/Pelco-P/RS-232/VISCA
IP Streaming
HTTP/NDI/ONVIF/RTMP/RTMPS/RTSP/SRT 1280 x 720 to 1920 x 1080
Control
Presets
255 via RS-23210 via IR
Pan/Tilt/Roll
Pan: 350° (-175 to 175°) at 0.1 to 100°/s Tilt: 180° (-90 to 90°) at 0.1 to 80°/s
