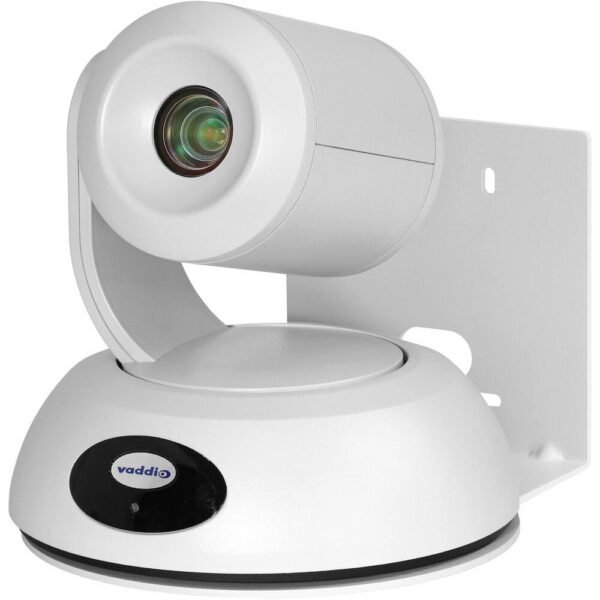

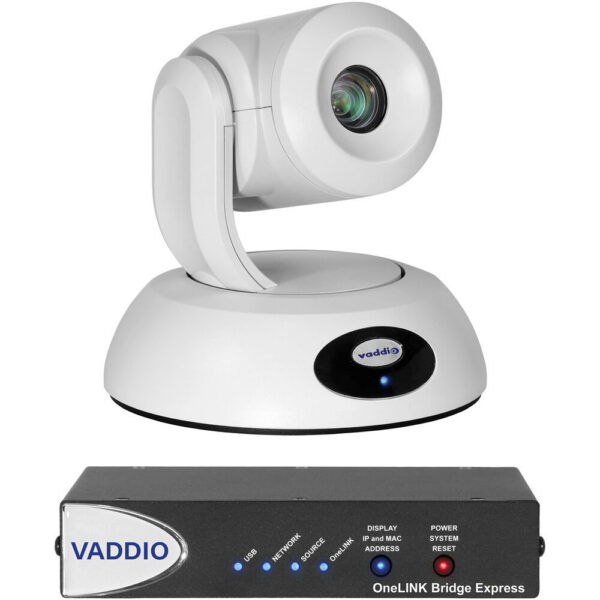

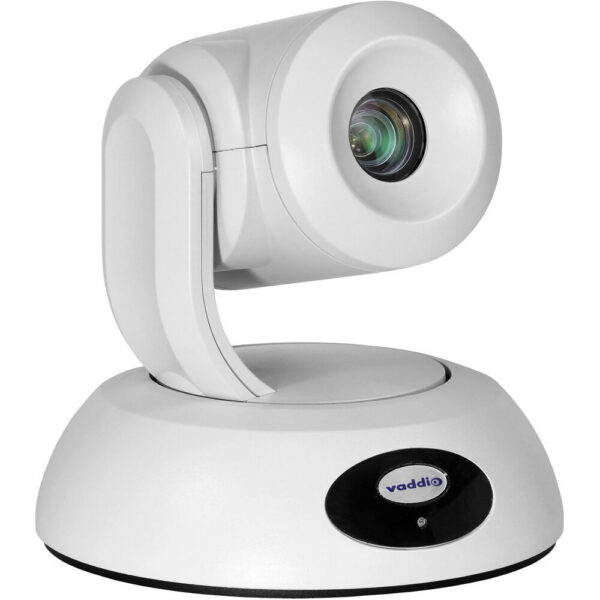

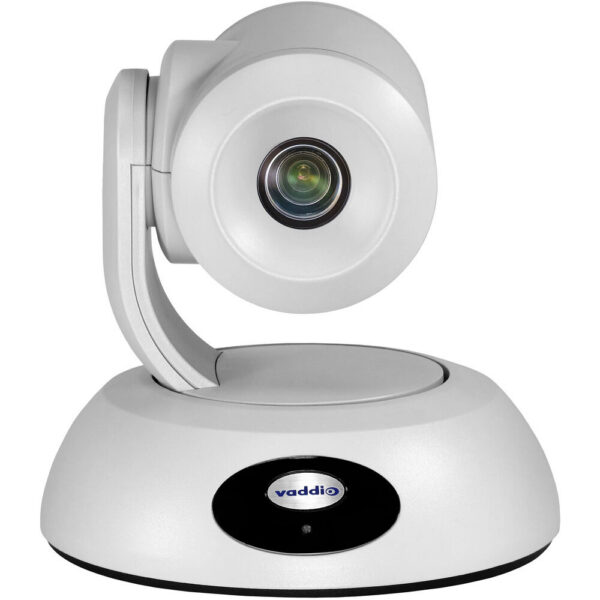

Vaddio RoboSHOT 12E HDBT OneLINK Bridge Express System for Cisco SX Codecs (White)
The Vaddio RoboSHOT 12E HDBT OneLINK Bridge Express System for Cisco SX Codecs (White) brings serious imaging performance to every shoot, from planned sessions to spontaneous moments. At its core is a 8.51 Megapixel 1/2.5"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
RoboSHOT 12E HDBT IP Camera System
OneLINK Bridge Express A/V Interface
Cable/Adapter Set for Cisco SX Codecs
1080p60 Video Resolution, 12x Total Zoom
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
Vaddio RoboSHOT 12E HDBT IP Camera System (White)
PoE+ Midspan Power Injector
Thin-Profile White Wall Mount with Mounting Hardware
IR Remote Commander

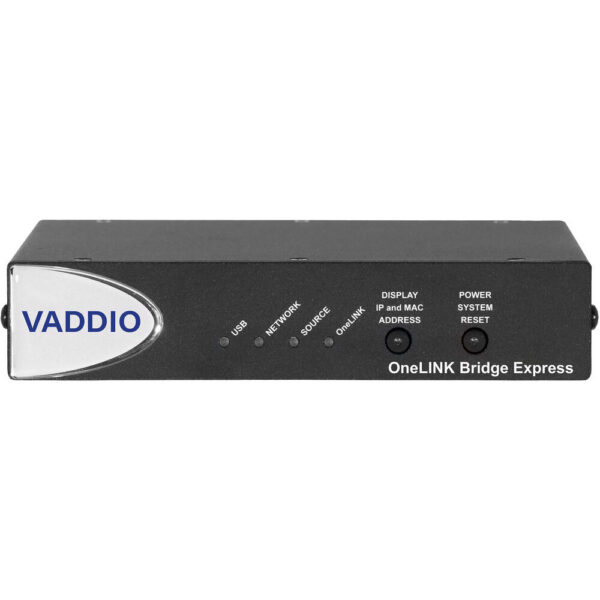

Vaddio OneLINK Bridge Express
Power Supply
4 x 3-Position 3.5mm Phoenix Plug
USB 3.0 Type-A to Type-B Cable (6')
RS-232 Adapter
Vaddio EZCamera Control Adapter
Vaddio EZCamera Control Adapter For TANDBERG Codecs
HDMI Cable (3')
Cat 5 Cable (3')
Directional Cat 5 Cable for Cisco SX20 (3')
Videos
SKU
999-96750-470W
Brand
Vaddio
Imaging
Image Sensor
1/2.5"-Type CMOS
Effective Sensor Resolution
8.51 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1 to 1/10000 Second
ISO/Gain Sensitivity
Gain: 0 to 33 dB
Signal-to-Noise Ratio
50 dB
Minimum Illumination
100 Lux
Flip / Mirror Support
Image Flip
White Balance
Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length
4.4 to 88.4mm
Max Optical Zoom
12x
Field of View
Horizontal: 70.2 to 6.8°
Maximum Aperture
f/2 to 3.8
Minimum Focus Distance
3.1" / 8 cm (Wide) to 31.5" / 80 cm (Tele)
Video Capture
Video Output
via HDMI / RJ451920 x 1080p at 25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Internal Recording
No
Broadcast Output
NTSC/PAL
Control
Presets
16
Tally Light
No
Networking
Wireless
IR
Interface
Video I/O
1x RJ45 (HDBaseT) Output
1x HDMI Output
Other I/O
1x RJ45 Control Input (Shared with Power Input, Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
Yes: PoE+ 802.3at
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
General
Certifications
CE, FCC, TAA
Dimensions (W x H x D)
7.05 x 6.94 x 6.75" / 17.91 x 17.63 x 17.14 cm
Weight
4.85 lb / 2.2 kg (Body Only)
Packaging Info
Package Weight
10.375 lb
Box Dimensions (Lx WxH)
13.5 x 12.5 x 12"
