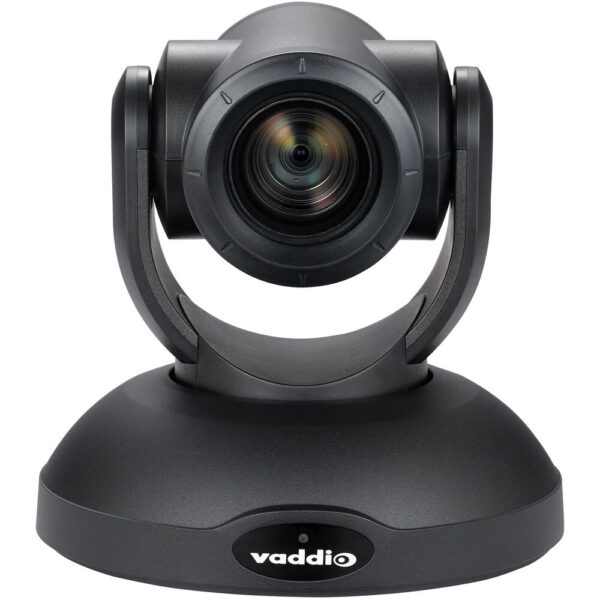

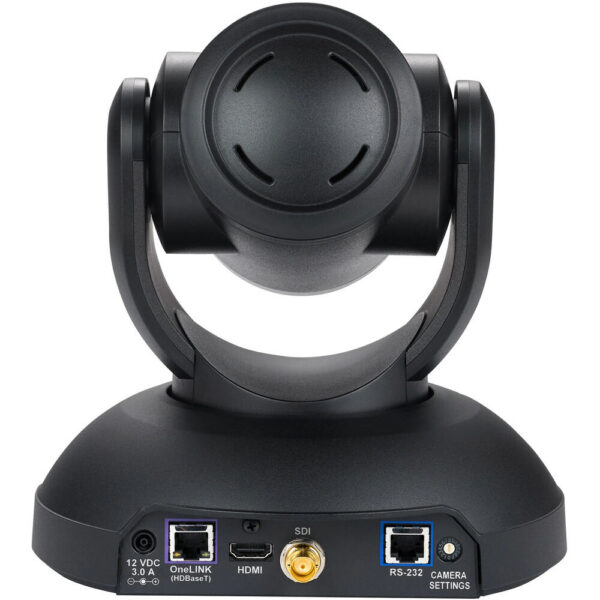

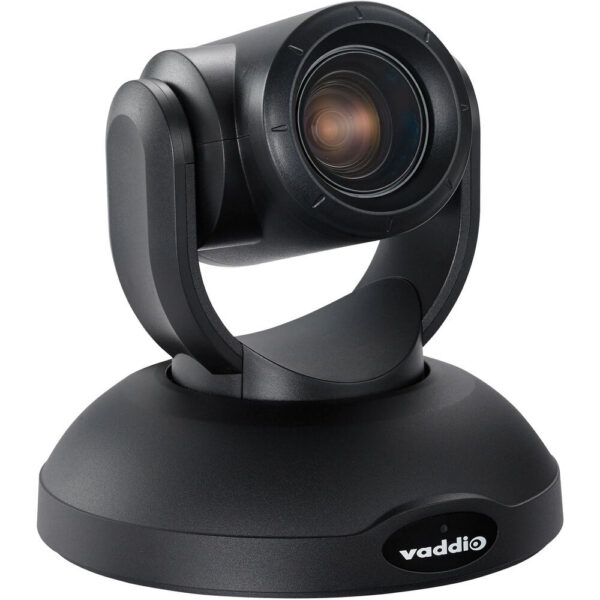

Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black)
$5,806.80
In Stock
- UHD 4K 2160p30 PTZ Camera
- Single 1/2.3" Exmor R Sensor
- 12x Optical Zoom, 1.67x Digital Zoom
- HDMI, HDBT, 3G-SDI, IP Streaming Output
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black)
Designed for creators who demand more from their gear, the Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black) delivers capable, consistent performance. At its core is a 8.93 Megapixel 1/2.3"-Type sensor. Everyday handling is covered with IR connectivity.
Highlights
- UHD 4K 2160p30 PTZ Camera
- Single 1/2.3" Exmor R Sensor
- 12x Optical Zoom, 1.67x Digital Zoom
- HDMI, HDBT, 3G-SDI, IP Streaming Output
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.
In the Box
- Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (Black)
- Vaddio IR Remote Commander
- AC Adapter (12 VDC, 3 A)
- North American Power Cord Set

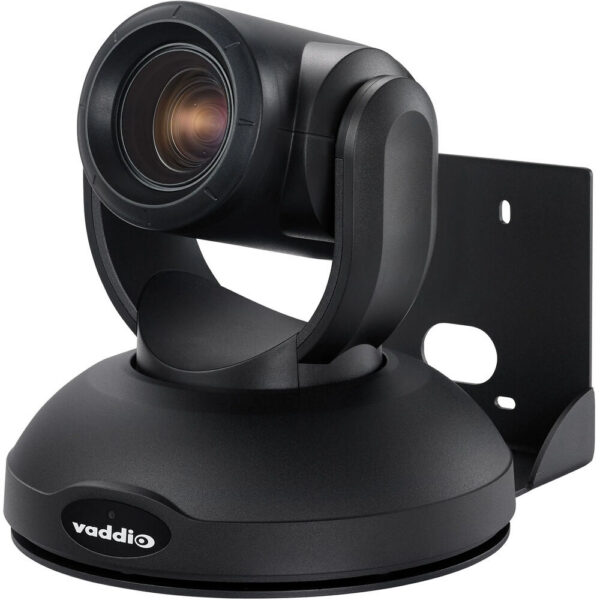

- Thin Profile Wall Mount
- EZCamera RS-232 Control Adapter
Videos
| SKU | 999-9950-000B |
|---|---|
| Brand | Vaddio |
| Image Sensor | 1/2.3"-Type CMOS |
|---|---|
| Sensor Resolution | Effective: 8.93 Megapixel Actual: 9.03 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Minimum Illumination | 100 Lux |
|---|---|
| Flip / Mirror Support | Mirror (Vertical) |
| White Balance | Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors |
| Focal Length | 10 to 120mm |
|---|---|
| Max Optical Zoom | 12x |
| Max Digital Zoom | 1.7x |
| Field of View | Horizontal: 74 to 4.8° |
| Video Output | via HDMI / SDI/BNC3840 x 2160 at 25/30.00 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Internal Recording | No |
| Broadcast Output | NTSC |
| IP Streaming | H.264 via RTSP 1920 x 1080 at 30p (Simultaneous Multi-Stream) |
| Presets | 16 |
|---|---|
| Pan/Tilt/Roll | Pan: 320° (-160 to 160°) at 0.35 to 120°/s Tilt: 120° (-30 to 90°) at 0.35 to 120°/s |
| Wireless | IR |
|---|
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output |
|---|---|
| Other I/O | 1x RJ45 (RS-232, VISCA) Control 1x RJ45 (LAN) |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE++ 802.3bt |
|---|---|
| Power Consumption | Power Supply: 12 VDC at 3 A |
| Operating Conditions | 23 to 140°F / -5 to 60°C at 20 to 80% Humidity |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C at 20 to 95% Humidity |
| Certifications | CE, FCC, TAA, UL |
|---|---|
| Dimensions (W x H x D) | 8 x 7.9 x 7.7" / 20.3 x 20.1 x 19.6 cm |
| Weight | 6 lb / 2.7 kg (Body Only) |
Reviews
There are no reviews yet.
