Bolin Technology SD530H Outdoor 3G-SDI PTZ Camera, Adapter, and Wall Mount Bracket Kit
The Bolin Technology SD530H Outdoor 3G-SDI PTZ Camera, Adapter, and Wall Mount Bracket Kit is built for photographers and creators who want dependable, professional results. At its core is a 2.13 Megapixel 1/2.8"-Type sensor. Everyday handling is covered with No connectivity.
Highlights
1/2.8" CMOS STARVIS Sensor
Dual 3G-SDI and IP Outputs
Outdoor PTZ Wall Mount Bracket
SD-TCA Tail Cable Adapter
Ordered from NIXTRONIC, it ships with full tracking worldwide and is backed by our 60-day returns on eligible items.

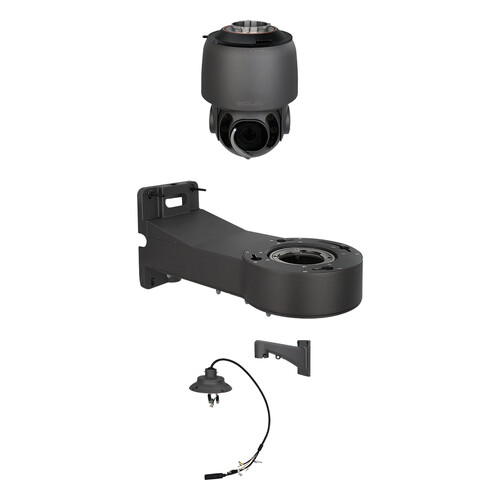

In the Box

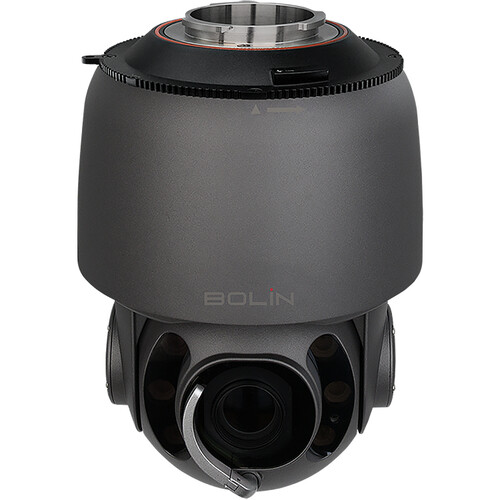

Bolin Technology SD530H Outdoor 3G-SDI PTZ Camera (Gray)
Power Adapter
Power Connector
Safety Chain

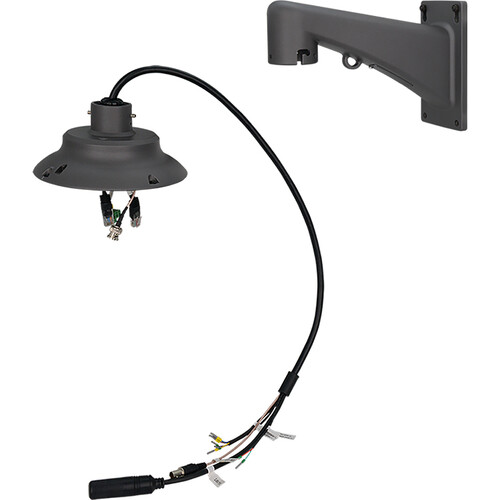

Bolin Technology SD530 Tail Cable Adapter with Wall Mount (3.3', Gray)
SD-WM Wall Mount (Gray)

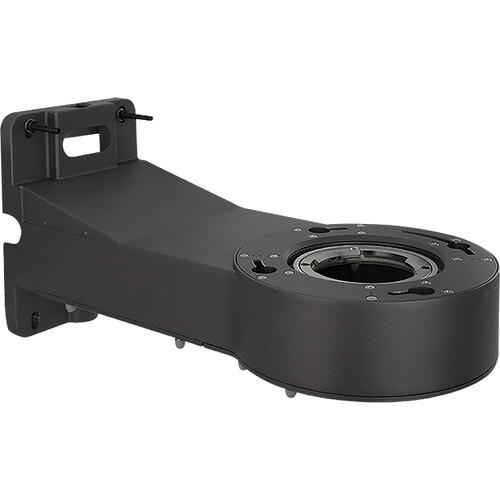

Bolin Technology ES-WM Outdoor PTZ Wall Mount Bracket (Gray)
Mounting Support Bracket
Positioning Template
4 x 1/4"-20 Screw
Safety Cable
SKU
BOSD530HK
Brand
Bolin Technology
Imaging
Image Sensor
1/2.8"-Type CMOS
Effective Sensor Resolution
2.13 Megapixel (1920 x 1080)
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/1 Second
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: ATW, Auto, Manual, One Push, One Push Set, Outdoors
Lens
Focal Length
4.3 to 129mm
Max Optical Zoom
30x
Max Digital Zoom
12x
Field of View
Horizontal: 64 to 2.4°
Maximum Aperture
f/1.6 to 4.7
Minimum Focus Distance
0.4" / 1 cm (Wide) to 47.24" / 120 cm (Tele)
Video Capture
Video Output
via RJ45 / SDI/BNC1920 x 1080p
Embedded Audio
LAN (RJ45)/SDI
Internal Recording
No
Broadcast Output
NTSC/PAL
Control
Presets
255
Pan/Tilt/Roll
Pan: 360° at 0.05 to 100°/s Tilt: 120° (-90 to 30°) at 0.05 to 50°/s
Networking
Wireless
No
Interface
Video I/O
1x BNC (3G-SDI) Output
1x RJ45 LAN Input/Output
Other I/O
1x RJ45 (RS-422) Control Input/Output
1x Block 3-Pin Input/Output
Built-In Speaker
No
Power
PoE Support
Yes: PoE++ 802.3bt
Power I/O
1x Proprietary (24VDC) Input
Power Consumption
Device: 55 W with Heater
Device: 30 W
Environmental
Operating Conditions
-40 to 140°F / -40 to 60°C up to 100% Humidity
General
Mounting
1x Proprietary for Ceiling
Certifications
CCC, CE, FCC, IC, RoHS, UL, WEEE
Dimensions (W x H x D)
8.3 x 11.7 x 8.3" / 212 x 297 x 212 mm
Weight
11.5 lb / 5.2 kg (Gimbal)
Packaging Info
Package Weight
17.895 lb
Box Dimensions (Lx WxH)
17.8 x 12.6 x 11.8"
