Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
$47,393.95
In Stock
- 19.29MP MOS Image Sensor, B4 Mount
- Up to UHD 4K60 12G-SDI Output
- Independent Operation without CCU
- Redundant Operation with ST 2110
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice

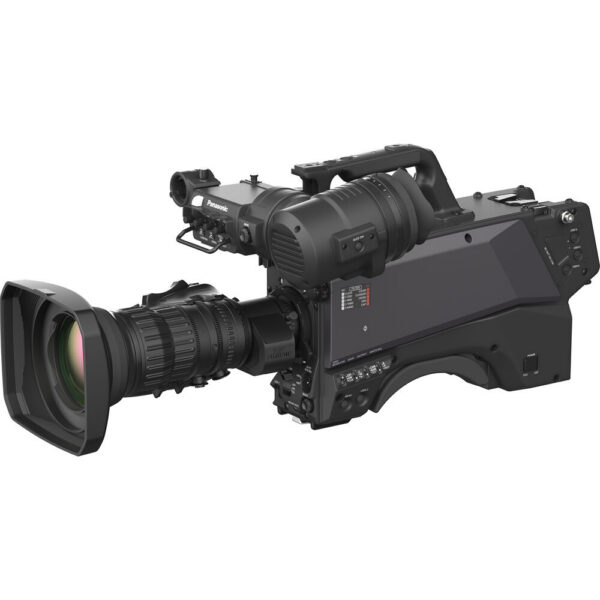

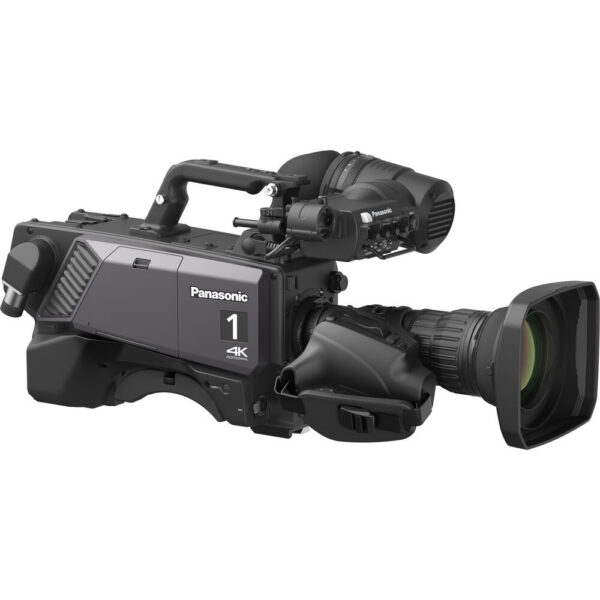

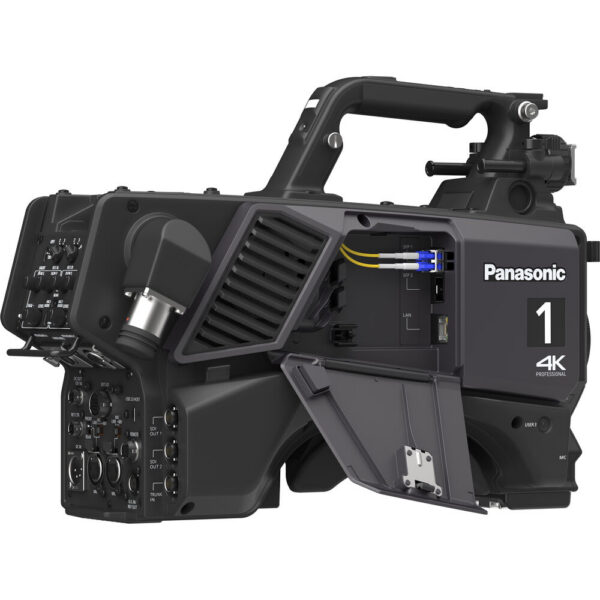

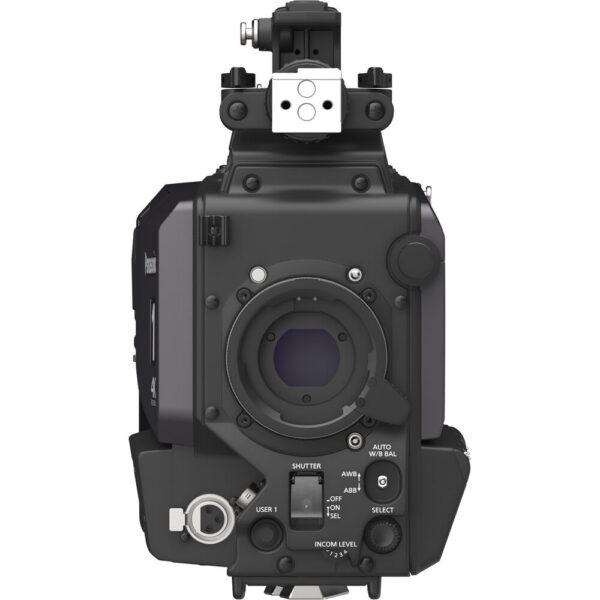

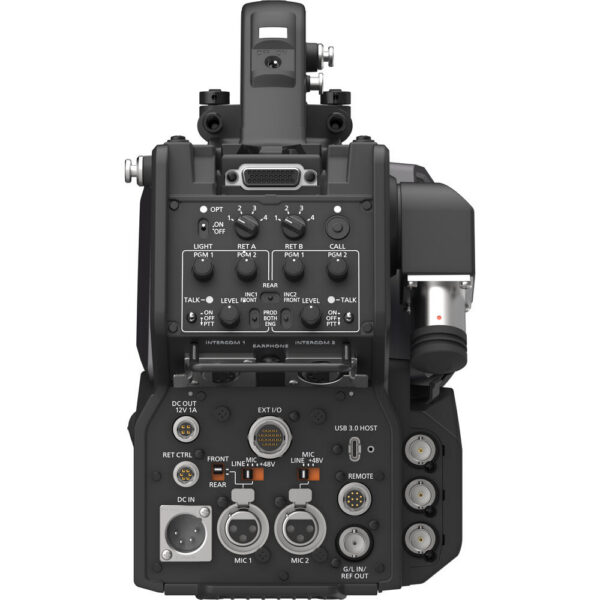

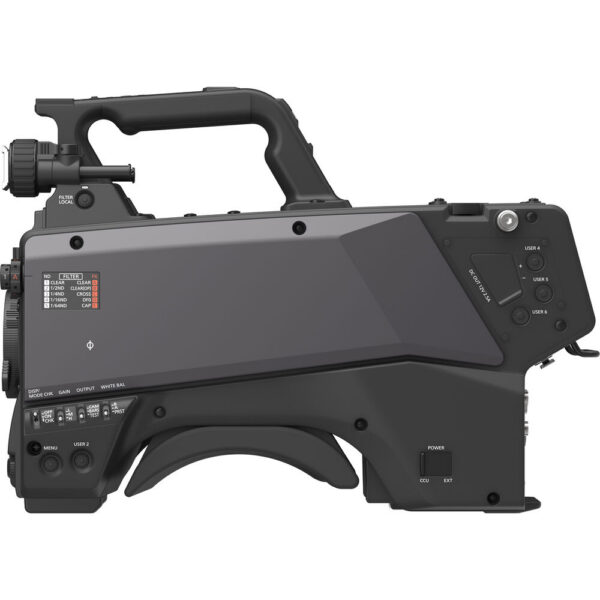

Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
The Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera is built for photographers and creators who want dependable, professional results. At its core is a 19.29 Megapixel Size-Unspecified MOS sensor paired with the B4 lens mount.
Highlights
- 19.29MP MOS Image Sensor, B4 Mount
- Up to UHD 4K60 12G-SDI Output
- Independent Operation without CCU
- Redundant Operation with ST 2110
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box
- Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera
- Port Cap
Videos
| SKU | AK-UCX100GSJ |
|---|---|
| Brand | Panasonic |
| Lens Mount | B4 |
|---|---|
| Image Sensor | Size-Unspecified MOS |
| Sensor Resolution | 19.29 Megapixel |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Shutter Type | Electronic Rolling Shutter |
|---|---|
| Shutter Speed | 1/2000 to 1/48 Second |
| ISO/Gain Sensitivity | Gain: -6 to 18 dB |
| Signal-to-Noise Ratio | 62 dB |
| Internal Recording | 3840 x 21601920 x 1080p |
|---|---|
| Video Output | via Optical Fiber / SDI/BNC3840 x 2160 at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps |
| Gamma Curve | HDR-HLG, Rec709, Rec2020 |
| Media/Memory Card Slot | No |
|---|---|
| Internal Storage | No |
| CCU I/O | 1x RJ45 |
| Video I/O | 2x BNC (12G-SDI) Output 1x BNC (3G-SDI) Input |
| Audio I/O | 3x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)2x XLR 5-Pin Intercom Input/Output 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x XLR 4-Pin (12VDC) Input 1x LEMO 2-Pin (12VDC at 2.5 A) Output 1x USB-C Output |
| Other I/O | 1x BNC (Genlock, Reference, Sync) Input/Output 2x SFP Input/Output 1x 20-Pin Viewfinder 1x 29-Pin Viewfinder Output 1x Hirose 6-Pin 1x 20-Pin 1x Hirose 10-Pin Data 1x RJ45 (LAN) |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Power Consumption | 119 W |
|---|
| Operating Conditions | 14 to 113°F / -10 to 45°C up to 85% Humidity |
|---|---|
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Tripod Mount | 1x 1/4"-20 Female |
|---|---|
| Dimensions (W x H x D) | 14.6 x 10.5 x 6.2" / 371.5 x 267 x 157 mm |
| Weight | 10 lb / 4.55 kg (Body Only) |
| Package Weight | 14.72 lb |
|---|---|
| Box Dimensions (Lx WxH) | 19.4 x 15.7 x 11.4" |
