Canon CR-N500 4K NDI HX2 PTZ 3-Camera Kit with RC-IP300 Controller (White)
$19,296.00
In Stock

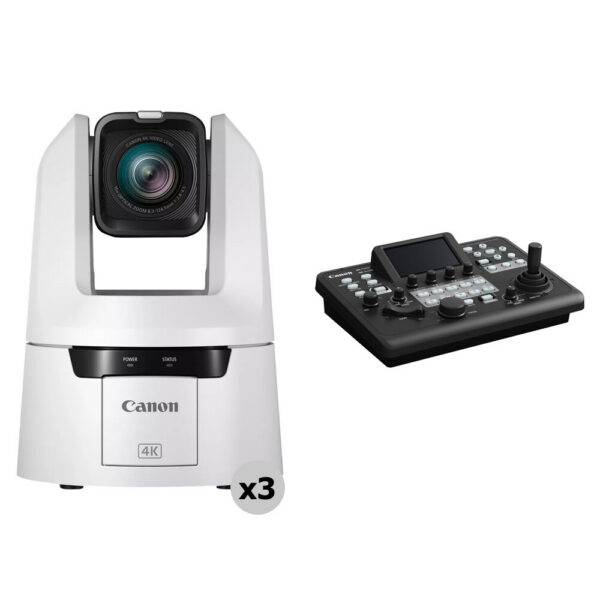

- 3 White CR-N500 4K PTZ Cameras
- RC-IP300 PTZ Joystick Controller
- Built-In NDI HX2 Support, 15x Zoom, PoE+
- Control up to 200 PTZ Cameras via IP
Tracked ShippingRates shown at checkout
60-Day ReturnsOn eligible items
Expert SupportReal people, real advice
Canon CR-N500 4K NDI HX2 PTZ 3-Camera Kit with RC-IP300 Controller (White)
The Canon CR-N500 4K NDI HX2 PTZ 3-Camera Kit with RC-IP300 Controller (White) is built for photographers and creators who want dependable, professional results. At its core is a 8.29 Megapixel 1"-Type sensor. Everyday handling is covered with IR*Built-In connectivity.
Highlights
- 3 White CR-N500 4K PTZ Cameras
- RC-IP300 PTZ Joystick Controller
- Built-In NDI HX2 Support, 15x Zoom, PoE+
- Control up to 200 PTZ Cameras via IP
Every order from NIXTRONIC ships tracked worldwide and is covered by our 60-day return policy on eligible items.
In the Box

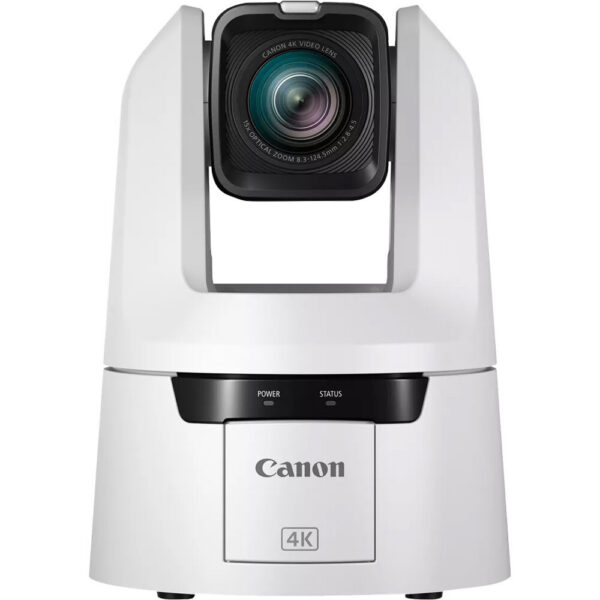

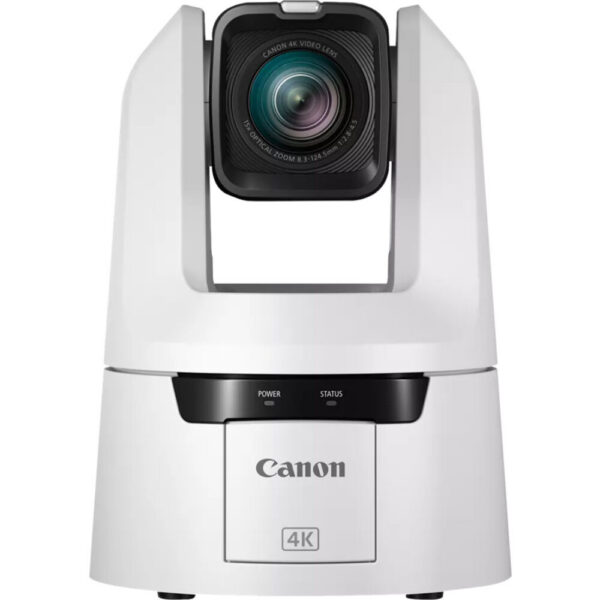

- 3 x Canon CR-N500 Professional 4K NDI HX2 PTZ Camera with 15x Zoom (White)
- IR Remote with Battery
- Safety Wire
- Safety Wire with Screw
- Mounting Plate with Screw
- AC Adapter
- Power Cable

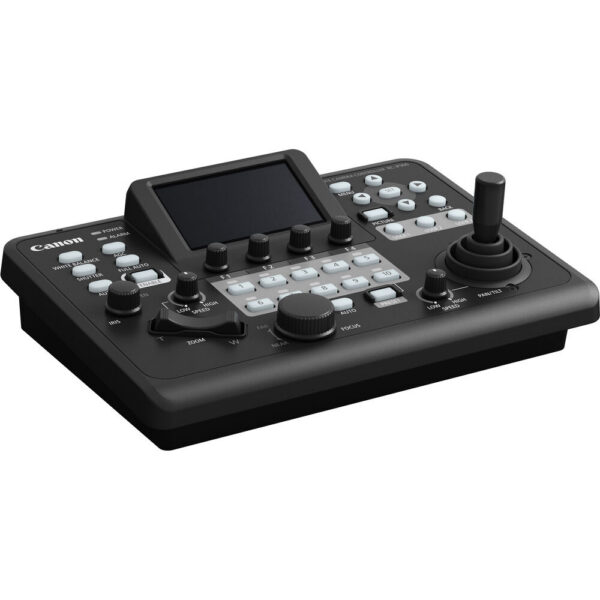

- Canon RC-IP300 PTZ Camera Controller
- Power Supply
Videos
| SKU | CARN500WX3K |
|---|---|
| Brand | Canon |
| Image Sensor | 1"-Type CMOS |
|---|---|
| Sensor Resolution | Effective: 8.29 Megapixel (3840 x 2160) Actual: 13.4 Megapixel |
| Focus Control | Autofocus Manual Focus |
| Shutter Speed | 1/2000 to 1/3 Second |
|---|---|
| White Balance | Presets: AWB, Daylight, Manual, Set A, Set B, Tungsten |
| Focal Length | 8.3 to 124.5mm (35mm Equivalent: 25.5 to 382.5mm) |
|---|---|
| Max Optical Zoom | 15x |
| Max Digital Zoom | 20x |
| Field of View | Horizontal: 73 to 5.7°Vertical: 45.2 to 3.2° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | 0.4" / 1 cm (Wide) to 23.6" / 59.9 cm (Tele) |
| Video Output | 4:2:0 8-Bit via RJ453840 x 2160 at 14.99/29.97 fps 1920 x 1080p at 14.99/29.97/50/59.94 fps 1280 x 720 at 14.99/29.97/59.94 fps 640 x 360 at 14.99/29.97/59.94 fps 4:2:2 10-Bit via HDMI3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 14.99/29.97/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
|---|---|
| Embedded Audio | HDMI/NDI/SDI |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264/H.265 via NDI HX/NDI HX2/RTMP/RTMPS/RTP/RTSP/SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p (Simultaneous Multi-Stream) 640 x 360 to 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p (Simultaneous Multi-Stream) |
| Presets | 100 via IP, VISCA |
|---|---|
| Pan/Tilt/Roll | Pan: 348° (-170 to 170°) at 0.1 to 100°/s Tilt: 130° (-30 to 90°) at 0.21 to 100°/s |
| Tally Light | Yes |
| Wireless | IR*Built-In |
|---|
| Media/Memory Card Slot | Single Slot: microSD (Unspecified Type) |
|---|---|
| Video I/O | 1x BNC (3G-SDI) Output 1x HDMI Output 1x RJ45 (NDI) Output |
| Audio I/O | 2x XLR 3-Pin Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Other I/O | 1x RJ45 (RS-422, VISCA) Input 1x USB-A Control Input 1x BNC (Genlock) Input/Output |
| Built-In Microphone | No |
| Built-In Speaker | No |
| PoE Support | Yes: PoE+ 802.3at |
|---|---|
| Power I/O | 1x Barrel (24VDC) Input |
| Power Consumption | PoE: 19.6 WPower Supply: 24 VDC 18.6 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
|---|---|
| Storage Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Impact Resistance | No |
| Environmental Resistance | No |
| Mounting | 1x 1/4"-20 Female |
|---|---|
| OS Compatibility | Computer: macOS 11 or Later / Windows 10 or Later Mobile: Android/iOS |
| Dimensions (W x H x D) | 7.87 x 10.6 x 8.2" / 19.99 x 26.9 x 20.8 cm (Without Protrusions) |
| Weight | 9 lb / 4.1 kg (Body Only) |
| Package Weight | 15.925 lb |
|---|---|
| Box Dimensions (Lx WxH) | 19 x 15.5 x 14.9" |
